- Residential water supply from deep wells
- Municipal and industrial water supply
- Irrigation and other agricultural applications
- Fire-fighting systems
- Pressure boosting in high-rise buildings
SWP submersible pumps QF and QF A for deep wells starting from 4“ (DN 100) and with
flow up to 280 m3/h. All essential parts, such as shaft, impellers and intermediate chambers are made
of fully stainless steel AISI 304. The sealings are made of corrosion- and chemical resistant materials
and the bearings consist of hard metal / ceramic combination.
The light stainless steel construction allows high efficiency through which the energy consumption is
drastically reduced. The cost and time for installation is lower due to the light weight of the stainless
steel sheet metal pump construction.

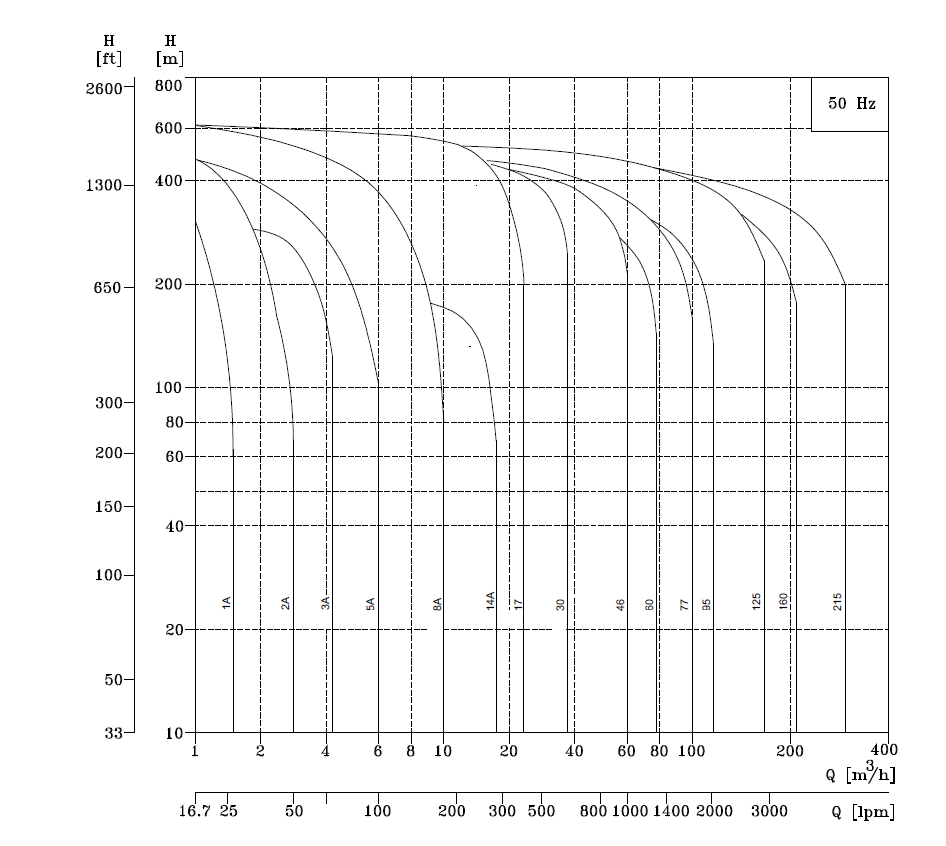

50 Hz
- Capacity: max. 280m3/h
- Head: max. 630m
- Liquid temperature: 0°C bis +60°C
- Sand content: max. 50g/m3
60 Hz
- Capacity: max. 320m3/h
- Head: max. 650m
- Liquid temperature: 0°C bis +60°C
- Sand content: max. 50g/m3
Download QF_50Hz catalogue
